Package org.xlightweb

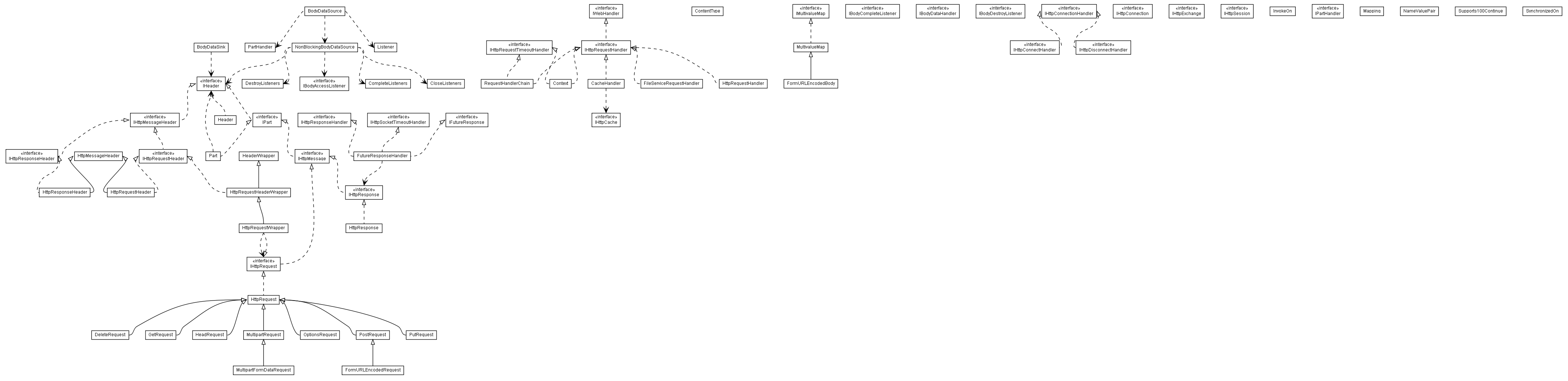

Package class diagram package org.xlightweb
Interface Summary
IBodyCompleteListener Listener, which will be call if the body is complete received.
IBodyDataHandler The body handler.
IBodyDestroyListener Listener, which will be call if the body has been destroyed
IFutureResponse The IFutureResponse represents the result of an asynchronous call.
IHeader Header definition
IHttpConnectHandler The connect handler will be called if a new http connection has been established.
IHttpConnection A http connection (session) between two http client and http server.
IHttpConnectionHandler marker interface
IHttpDisconnectHandler The connect handler will be called if a http connection has been disconnected.
IHttpExchange This class encapsulates a HTTP request received and a response to be generated in one exchange.
IHttpMessage Http Message
IHttpMessageHeader Http Header
IHttpRequest Http Request
IHttpRequestHandler call back interface which will be notified if a new requests is received.
IHttpRequestHeader Http Request Header
IHttpRequestTimeoutHandler Handles the http request timeout.
IHttpResponse Http response
IHttpResponseHandler call back interface to be notified if the response has been received

Example: ResponseHandler implements IResponseHandler { public void onResponse(IHttpResponse response) throws IOException { status = response.getStatus(); ... } public void void onException(IOException ioe) { ... } }
IHttpResponseHeader Http Response Header
IHttpSession The HttpSession.
IHttpSocketTimeoutHandler SocketTimeouthandler

Example: class ResponseHandler implements IHttpResponseHandler, IHttpSocketTimeoutHandler { public void onResponse(IHttpResponse response) throws IOException { // ... } // will only be called if an exception occurs public void onException(IOException ioe) { // ... } // overrides the onException method by handling socket timeout exceptions public void onException(SocketTimeoutException stoe) { // ... } }
IMultivalueMap Multi value map definition
IPart Part defintion
IPartHandler Part handler
IWebHandler marker interface


Class Summary
BlockingBodyDataSource Deprecated. use BodyDataSource instead
BodyDataSink I/O resource capable of sending the body data.
BodyDataSource I/O resource capable of providing body data in a blocking way.
BodyForwarder Implementation base of a body forwarder.
CacheHandler Cache handler Example: RequestHandlerChain chain = new RequestHandlerChain(); chain.addLast(new CacheHandler(500)); // add a cache handler with max size 500 KB chain.addLast(new FileServiceRequestHandler(basepath)); HttpServer server = new HttpServer(chain); //...
ContentType This class represents a content type
Context By using the Context specific request handlers can be assigned via a url-pattern to a set of URLs (Routing).
DeleteRequest a DELETE request
FileServiceRequestHandler Handler implementation to handle file requests.
FormURLEncodedBody Deprecated. replaced by MultivalueMap
FormURLEncodedRequest A Form Url Encoding request.
FutureResponseHandler A response handler implementation which supports a future behavior.
GetRequest a GET request
Header Implementation base for a header
HeadRequest a HEAD request
HttpRequest http request
HttpRequestHandler Provides an abstract class to be subclassed to implement a IHttpRequestHandler.
HttpRequestHeader http request header
HttpRequestHeaderWrapper Provides a convenient implementation of the HttpRequestHeader interface that can be subclassed by developers wishing to adapt the request header.
HttpRequestWrapper Provides a convenient implementation of the HttpRequest interface that can be subclassed by developers wishing to adapt the request.
HttpResponse http response
HttpResponseHeader http response header
HttpUtils A HTTP utility class
MultipartFormDataRequest A multipart/form-data request, which supports file uploads.
MultipartRequest A multipart request.
MultivalueMap A multivalue map
NameValuePair Name-Value-Pair
NonBlockingBodyDataSource data source base implementation
OptionsRequest OPTIONS request
Part Part
PostRequest POST request
PutRequest PUT request
RequestHandlerChain Implements a handler chain.


Exception Summary
BadMessageException Checked exception thrown when a if a bad message occurs
DetailedClosedChannelException Checked exception thrown when a channel is closed
NoMultipartTypeException Checked exception thrown by accessing a non multipart body
ProtocolException Checked exception thrown when a protocol error has been occured
ReceiveTimeoutException Checked exception thrown when a timeout has been reached


Annotation Types Summary
InvokeOn Annotation which defines when a call back method will be call.
Mapping Annotation which defines the URL-pattern mapping.
Supports100Continue Annotation which defines the handler handles the Expect: 100-Continue header.
SynchronizedOn Annotation which defines the synchronization context by performing call back methods.
